Rope Border on Square Mesh Netting - Reference Examples of Custom Nets

Rope Bordering on Square Mesh Pattern Netting

5/16" Braided Polyester Rope Border installed on square mesh pattern netting.  This is a bordering type in which the rope is typically machine-sewn to the perimeter edges of the mesh.  This is a 5/16" Soft Braided 16-Strand 2x2 100% Polyester Rope, with a 2800 lb. breaking strength and less than 3% stretch at break.  Machine-sewn to the netting with polyester twine.
(note: one exception to this fabrication method in some instances is the #15 X 4" nylon netting, which is often rope-bordered using the hand-sewn process with clove hitch knotting technique used on diamond mesh nets).

Below we present a series of reference images that help demonstrate this type of bordering on a selection of netting types.  Not all netting options that we supply are shown, however a diverse range of twine thicknesses and mesh sizes are included to provide you with helpful context.  Each image is captioned with the netting details, along with any pertinent notes that may apply - and there are some closeup photos as well.

Reference Images of Rope Bordered Nets - Square Mesh Pattern

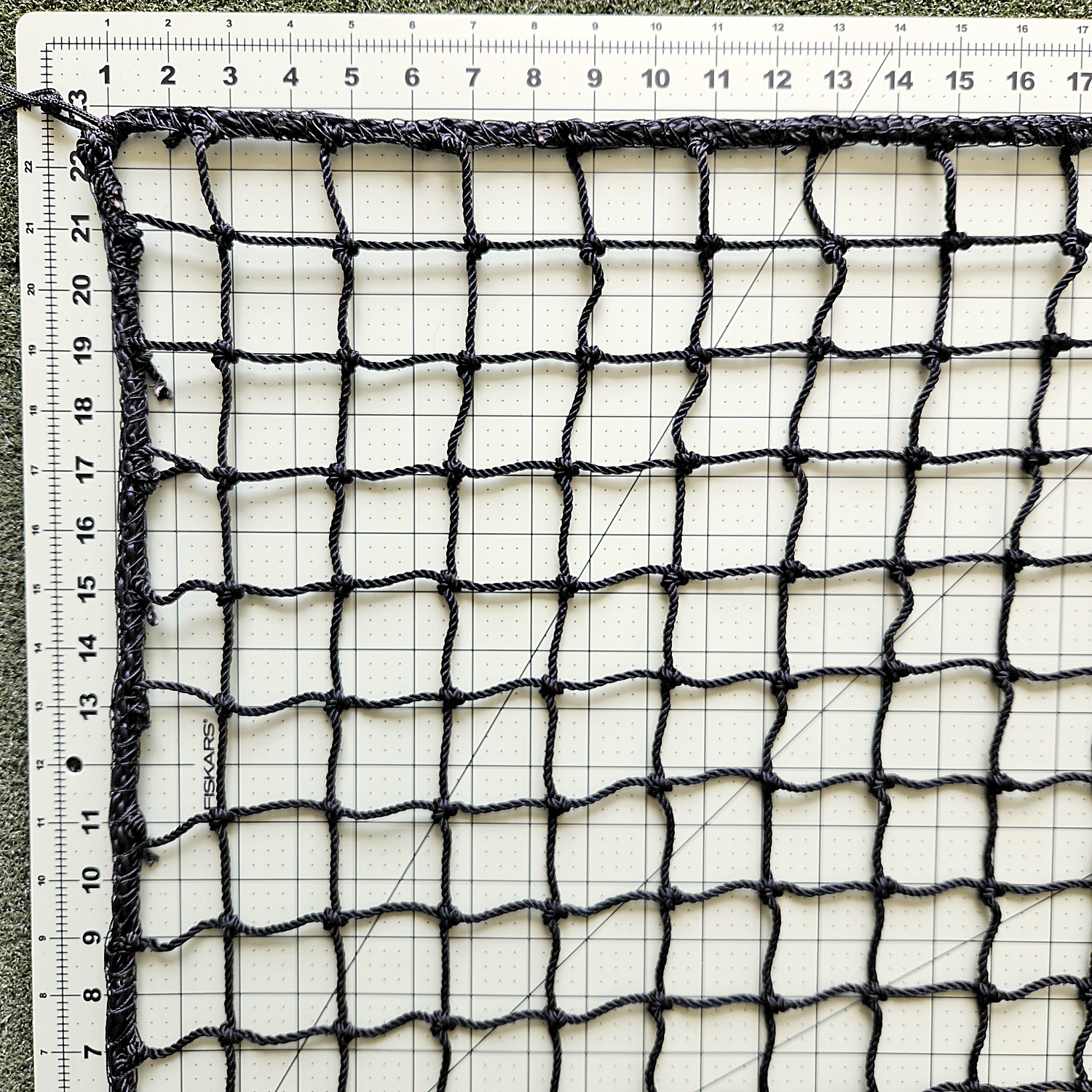

#72 X 1-3/4" Twisted-Knotted Nylon Netting

#72 X 1-3/4" Twisted-Knotted Nylon Netting (machine sewn rope detail)

#21 X 1-3/4" Twisted-Knotted Nylon Netting

#15 X 3/4" Twisted-Knotted Nylon Netting

#15 X 3/4" Twisted-Knotted Nylon Netting (machine sewn rope detail)

#36 X 4" Twisted-Knotted Nylon Netting

210D/80 X 1" Braided-Knotless Nylon Netting

210D/80 X 1" Braided-Knotless Nylon Netting (machine sewn rope detail)

#72 X 1-3/4" Twisted-Knotted Nylon Netting (shown with objects of containment)

#15 X 3/4" Twisted-Knotted Nylon Netting (shown with objects of containment)

#36 X 4" Twisted-Knotted Nylon Netting (shown with objects of containment)

#21 X 1-3/4" Twisted-Knotted Nylon Netting (shown with objects of containment)

210D/80 X 1" Braided-Knotless Nylon Netting (shown with objects of containment)

#15 X 4" Twisted-Knotted Nylon Netting (shown with hand-sewn border technique)

#15 X 4" Twisted-Knotted Nylon Netting (shown with hand-sewn border technique, and objects of containment)
